2G 3G 4G Dual Band Wireless Repeater Mobile Signal booster GSM UMTS EGSM 900MHz & GSM DCS 4G LTE 1800MHz

FOB Reference Price:Get Latest Price
US $130-170 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
3AN, Hanphoenix
Model Number:
SR-GD65/17-H, SR-GD70/22-H, SR-17-1G1D, SR-20-1G1D
Color:
Sliver
CE certification:
CE1177
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard carton box or customized
Port
Shenzhen
Lead Time :
5 days

Products Features

1. ALC ensure output level stable and adjustable continuously.

2. Low power consumption and avoid to interference to BTS.

3. LED indicate and judge to signal level of uplink and downlink.

4. With the amplified linear power, the intermodulation and and spuriousness are suppressed effectively.

5. To easy or and convenient installation.



Applicable Scope

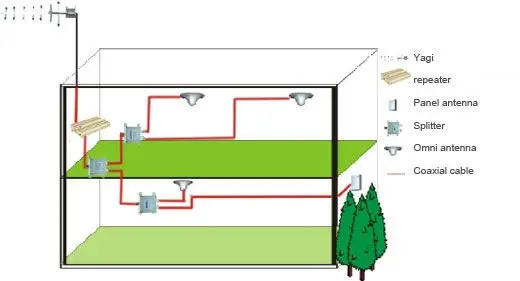

To expand signal coverage and resolve to signal blind area where signal weak or unavailable, such as home, office, public area etc.

-1



Technical Specification

Model

SR-GD65/17-H, SR-GD70/22-H,

SR-17-1G1D, SR-20-1G1D



Frequency range

GSM/UMTS, EGSM 900MHz +

GSM DCS, 4G/LTE 1800MHz


Output power17,20,22dBm

Gain

65,70dB

Noise Figure

≤6dB

Gain Flatness

≤6dB

Group Delay

≤0.5μs

ALC

≥ 20dB

Manual Gain Control

31dB in step of 1dB

Spurious Emission

9KHz--1GHz: ≤-36dBm/100KHz

1GHz--12.75GHz: ≤-30dBm/1MHz

VSWR

≤1.8

Inter-modulation

≤-30dBc

Other Specification

I/O Impedance

50Ω

RF Connector

N-Female

Dimensions Approx.

240*120*40mm

Weight Approx.

2 kg

Power Supply

110V - 220V AC±20%

Storage

-40 ∼ +85

Operating Temperature

-10 ∼ +55(indoor)

Humidity

≤95%
