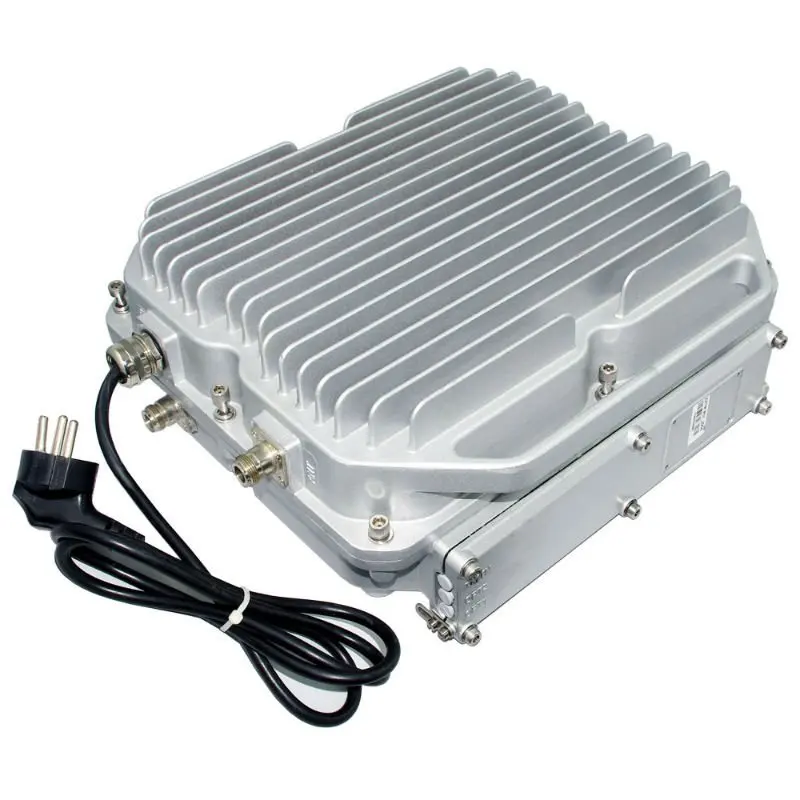

2W 3W GSM, EGSM, UMTS 900MHz powerful outdoor wireless repeater

FOB Reference Price:Get Latest Price
US $640-700 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
300 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
3AN, Hanphoenix
Model Number:
SR-G95/35-F, SR-33-1G
Standard:
ISO9001
Packaging & Delivery
Packaging Details
Carton
Delivery Time
7days

Products Features

1. ALC ensure output level stable and adjustable continuously.
2. Low power consumption and avoid to interference to BTS.
3. LED indicate and judge to signal level of uplink and downlink.
4. AGC and MGC function.
5. Customized band selective.
6. With the amplified linear power, the intermodulation and and spuriousness are suppressed effectively.
7. Compact design, to easy or and convenient installation.
Applicable Scope
To expand signal coverage and resolve to signal blind area where signal weak or unavailable, such as home, office, public area etc.

Technical Specification

Frequency range

Uplink:890 - 915MHz  Downlink:935 - 960MHz

Uplink:880 - 915MHz  Downlink:925 - 960MHz

Model

SR-G95/35-F, SR-33-1G

Output power

Uplink: 30±2dBm;  Downlink:33±2dBm

Max. Gain

Uplink: 85±3dB;  Downlink: 85±3dB

Noise Figure

≤6dB

Gain Flatness

≤8dB

Group Delay

≤0.5μs

ALC Range

≥ 20dB

Manual Gain Control

30B in step of 1dB(software control)

Spurious Emission

9KHz--1GHz: ≤-36dBm/100KHz

1GHz--12.75GHz: ≤-30dBm/1MHz

VSWR

≤1.8

Inter-modulation

≤-36dBc

Other Specification

I/O Impedance

50Ω

RF Connector

N-Female

Dimensions Approx.

320*280*150mm

Weight Approx.

4.5kg

Power Supply

AC 110-256V,50Hz

Storage

-40 ~ +85°C

Operating Temperature

-10 ~ +55°C

Humidity

≤95%
